Keybump - Time and Shape Shifting ADSR Envelope with Looping and Gates Looping Modes - Eurorack

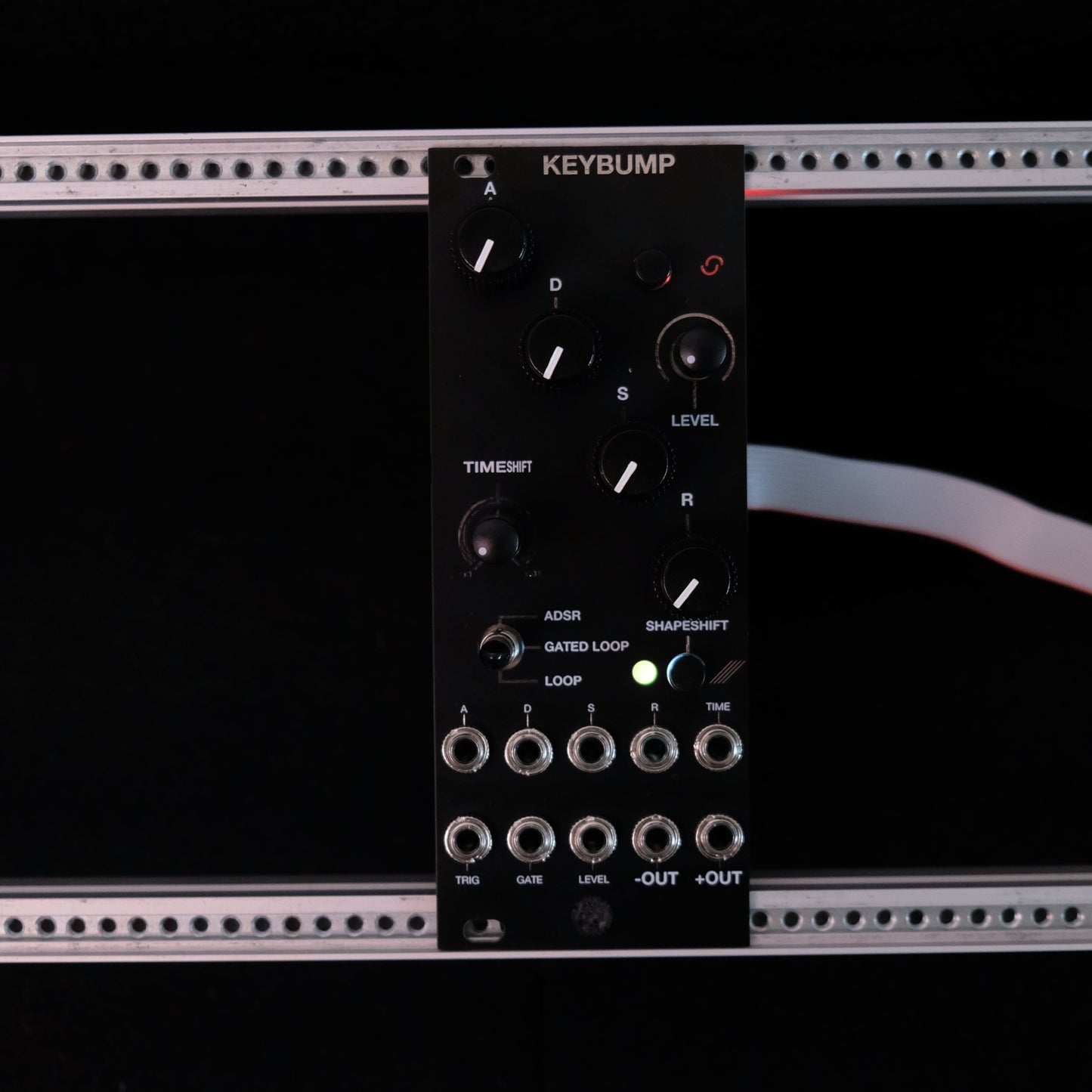

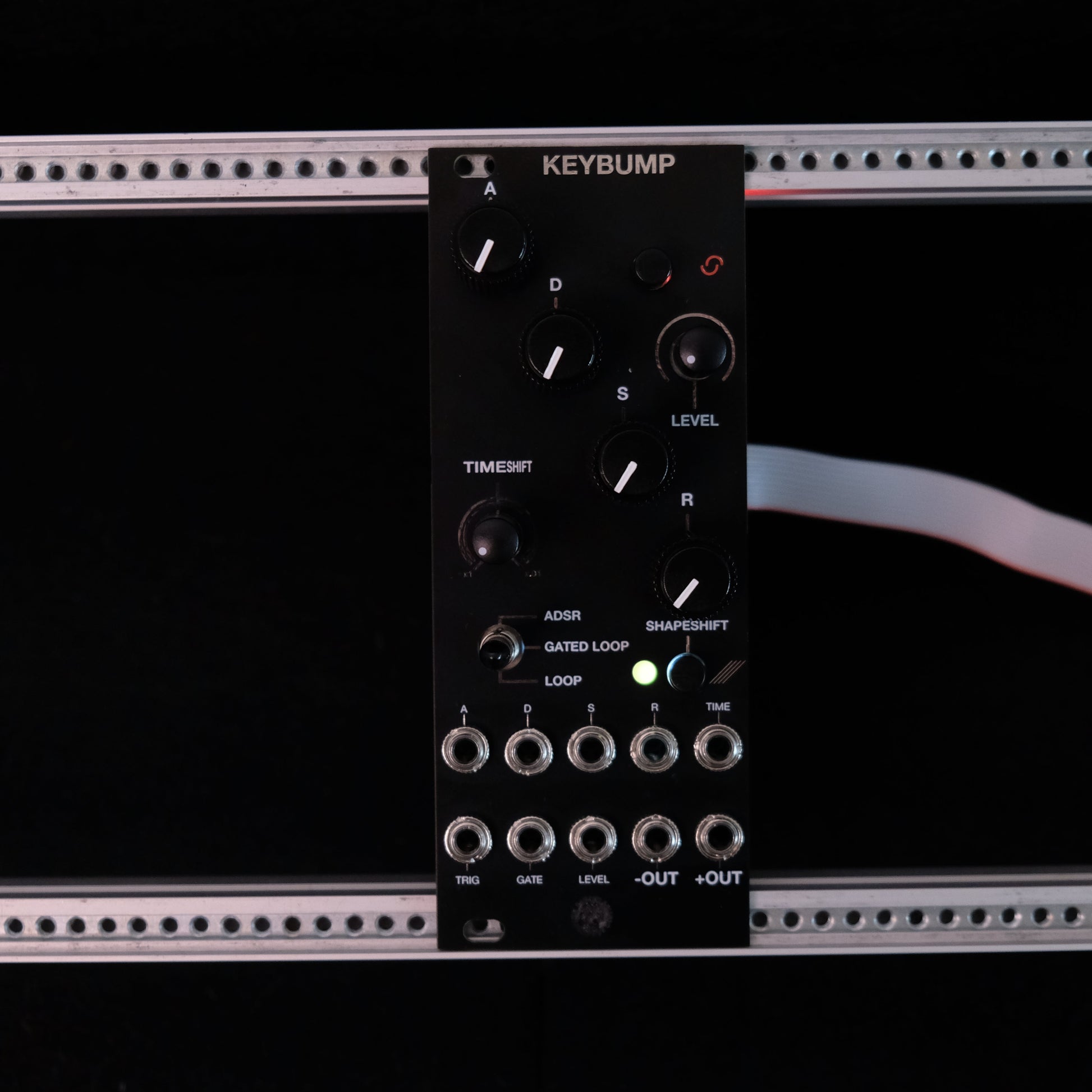

Keybump is a fully voltage controlled envelope generator for eurorack modular at 10HP

https://www.youtube.com/watch?v=V4LWAB-ZAss

Three primary modes of function:

ADSR: classic four-stage envelope generator with CV control over each parameter, amplitude and timeshift

Gated Loop: the envelope will cycle through each stage continuously, so long as a high gate is present at the gate input

Loop: continuous cycle [LFO] mode, the module will cycle through all stages at the selected amplitude regardless of gate/trig inputs. Adjust the Timeshift knob clockwise to reach low-audio rate modulation

Timeshift knob: you can adjust the entire modules temporal response with the Timeshift knob. Adjust the modules time range from x1 (counter clockwise) to x.01 (clockwise). For example, the attack knob in conjunction with the Timeshift knob can range between 1 mSec to 10 seconds.

Level: extremely versatile amplitude control. Try patching velocity from a keyboard controller into level for very responsive envelopes

Shape shift button: changes the response curve from linear to exponential
